LID GLASS®

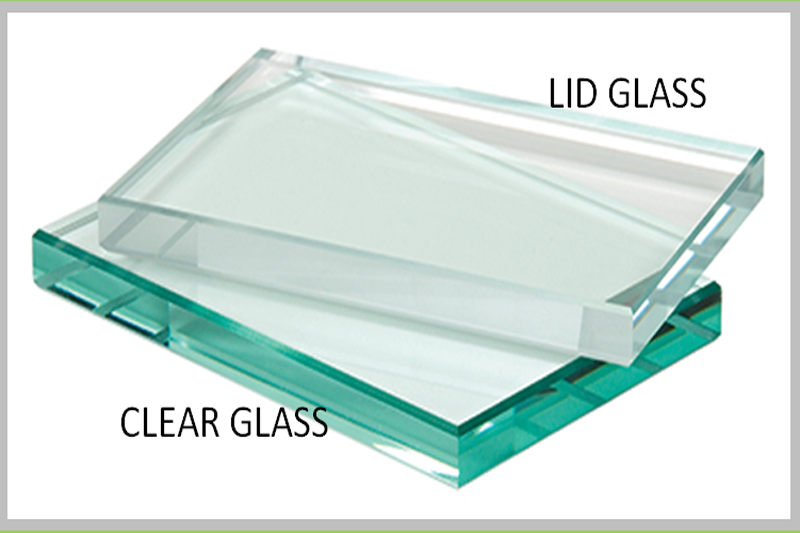

“LID GLASS®” is an exceptional clear glass made from highly modern technology. It is a glass of low iron content so that the greenish tint apparent in ordinary clear glass is reduced. Therefore, when seeing through LID, it looks clear and more natural than the ordinary glass.









Application Feature
  • "LID GLASS®" can be used in internal application such as Show room Jewelry cabinet  Collection cabinet Slide room/ movie room
  • Superior clear glass
  • When seeing through LID, it looks clear and more natural
  • Highly transparent and color neutrality

Production Specification
ITEM SIZE THICKNESS
Minimum (mm) Maximum (mm) Minimum (mm) Maximum (mm)
LID GLASS® - 3210 x 4500 3 19



Capabitity
Performance
Product Name Color Glass Thickness (mm) Optical performance Thermail performance SC SHGC STC
Visiblr Light (%) Solar Energy (%) UV (%)
T		 Ke=LT/SC RHG U-value
T R T R out A W/m.2 Btu/h-ft2 W/m.2-k Btu/h-ft2-f
Out In
FL 3 LID Crystal clear 3.00 91 8 8 90 8 2 88 87.5 700.14 221.98 5.33 0.94 1.04 0.90 29
FL 4 LID Crystal clear 4.00 91 8 8 90 8 2 87 87.5 697.43 221.13 5.30 0.93 1.04 0.90 30
FL 5 LID Crystal clear 5.00 91 8 8 89 8 3   87 87.5 694.71 220.26 5.27 0.93 1.04 0.90
30FL 6 LID Crystal clear 6.00 91 8 8 89 8 3 86 88.3 692.06 219.42 5.23 0.92 1.03 0.90 31
FL 8 LID Crystal clear 8.00 91 8 8 88 8 4 84 89.2 686.69 217.72 5.18 0.91 1.02 0.89 34
FL 10 LID Crystal clear 10.00 90 8 8 87 8 5 83 88.2 681.86 216.19 5.12 0.90 1.02 0.89 35
FL 12 LID Crystal clear 12.00 90 8 8 86 8 6 82 89.1 677.17 214.70 5.07 0.89 1.01 0.90 37
FL 15 LID Crystal clear 15.00 90 8 8 85 7 8 80 90.1 669.76 212.35 4.99 0.88 1.00 0.90 38
FL 19 LID Crystal clear 19.00 89 8 8

83

 7 10 74 89.9 661.08 209.60 4.89 0.86 0.99 0.90 39
6.38 Crystal clear Crystal clear 6.38 91 8 8 85 8 7 <1 91.1 670.61 212.62 5.19 0.91 1.00 0.87 32
8.38 Crystal clear Crystal clear 8.38 90 8 8 84 8 8 <1 90.9 666.00 211.16 5.13 0.90 0.99 0.86 34
10.38 Crystal clear Crystal clear 10.38 90 8 8 84 8 8 <1 90.0 665.07 210.87 5.09 0.90 1.00 0.87 35
12.38 Crystal clear Crystal clear 12.38 90 8 8 82 7 11 <1 91.8 656.88 208.27 5.02 0.88 0.98 0.85 36
16.38 Crystal clear Crystal clear 16.38 89 8 8 80 7 13 <1 91.8 648.26 205.54 4.91 086 0.97 0.84 37
20.38 Crystal clear Crystal clear 20.38 89 8 8 78 7 15 <1 93.7 639.30 202.69 4.82 0.85 0.95 0.83 38
24.38 Crystal clear Crystal clear 24.38 88 8 8 78 7 15 <1 92.6 635.50 201.49 4.73 0.83 0.95 0.83 41
30.38 Crystal clear Crystal clear 30.38 87 8 8 75 7 18 <1 93.5 623.50 197.69 4.59 0.81 0.93 0.81 N/A
SECURE FF 2LID 06076 Crystal clear 6.76 91 8 8 84 8 8 <1 91.9 666.61 211.35 5.14 0.91 0.99 0.86 33
SECURE FF 2LID 08076 Crystal clear 8.76 90 8 8 83 8 9 <1 90.9 662.03 209.90 5.09 0.90 0.99 0.86 35
SECURE FF 2LID 10076 Crystal clear 10.76 90 8 8 82 7 11 <1 91.8 657.61 208.50 5.03 0.89 0.98 0.85 36
SECURE FF 2LID 12076 Crystal clear 12.76 90 8 8 81 7 12 <1 92.8 653.22 207.11 4.98 0.88 0.97 0.84 37
SECURE FF 2LID 16076 Crystal clear 16.76 89 8 8 79 7 14 <1 92.7 643.86 204.14 4.88 0.86 0.96 0.84 39
SECURE FF 2LID 20076 Crystal clear 20.76 89 8 8 78 7 15 <1 93.7 636.05 201.67 4.78 0.84 0.95 0.83 40
SECURE FF 2LID 24076 Crystal clear 24.76 88 8 8 76 7 17 <1 93.6 692.14 199.47 4.68 0.82 0.94 0.82 42
SECURE FF 2LID 30076 Crystal clear 30.76 87 8 8 74 8 18 <1 94.6 617.53 195.79 4.55 0.80 0.92 0.80 N/A
