CONDEN STOP®

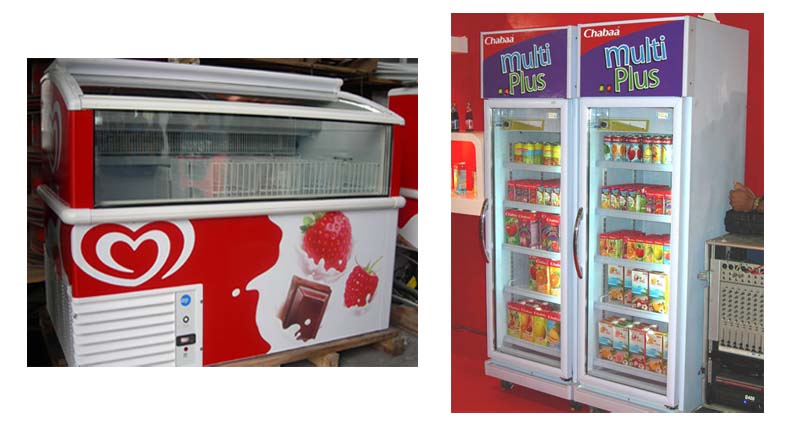

“CONDEN STOP®” is a condensation control glass that will protect up to 70% relative humidity based on industry standard. “CONDEN STOP®” is made up of 1 pane of clear hard coat low-e glass and 1 pane of clear glass. It offers good thermal insulation to avoid condensation forming on the glass surface and has excellent clarity to be able to see clearly the product or merchandize displayed inside a refrigerator unit.



Application Feature
  • Refrigerator doors
  • Freezer rooms
  • Control rooms
  • Lowest haze in a low-e glass
  • Good thermal insulation
  • Excellent clarity
  • High visibility



Production Specification
CONDEN STOP®
  • “CONDEN STOP®” has a maximum size of 2700 mm X 3500 mm.
  • Available in cut sizes and wide range thickness



Capability

Performance
Product Name Color Glass Thickness (mm) Optical performance Thermal performance SC SHGC STC
Visible Light (%) Solar Energy (%) UV (%)
T

Ke=

LT/SC

 RHG U-value
T R T R out A W/m.2 Btu/h-ft2 W/m.2-k Btu/h-ft2-f
Out In
CONDEN STOP® 1420 Clear 20.00 77 16 17 64 16 20 51 97.5 515.51 163.45 1.82 0.32 0.79 0.69 31
CONDEN STOP® 1622 Clear 22.00 77 16 17 64 16 20 51 97.5 514.59 163.15 1.72 0.30 0.79 0.69 32
CONDEN STOP® 1019 Clear 19.00 75 16 17 58 14 28 43 101.4 480.61 152.38 2.07 0.36 0.74 0.64 32
CONDEN STOP® 1221 Clear 21.00 75 16 17 58 14 28 43 102.7 478.67 151.77 1.92 0.34 0.73 0.64 33
CONDEN STOP® 1423 Clear 23.00 75 16 17 58 14 28 43 102.7 477.19 151.30 1.79 0.32 0.73 0.64 33
CONDEN STOP® 1625 Clear 25.00 75 16 17 58 14 28 43 102.7 476.05 150.94 1.70 0.30 0.73 0.64 33
Download
CONDEN STOP Brochure
