HEATED GLASS®

“HEATED GLASS®”

Is an electrically heated insulating glass unit that used in coolding systems freezer and other industries requiring transparent heater solutions with electronic control technology can control the occurrence of condensation on the glass surface in refrigerators at temperatures as low as -35 Degree Celsius

HEATED GLASS®

Composed of 2 layers, with the outer sheet being heated glass that provides warmth. It has the property of preventing water droplets, facilitated by the Air spacer that separates the layers.





Application Feature

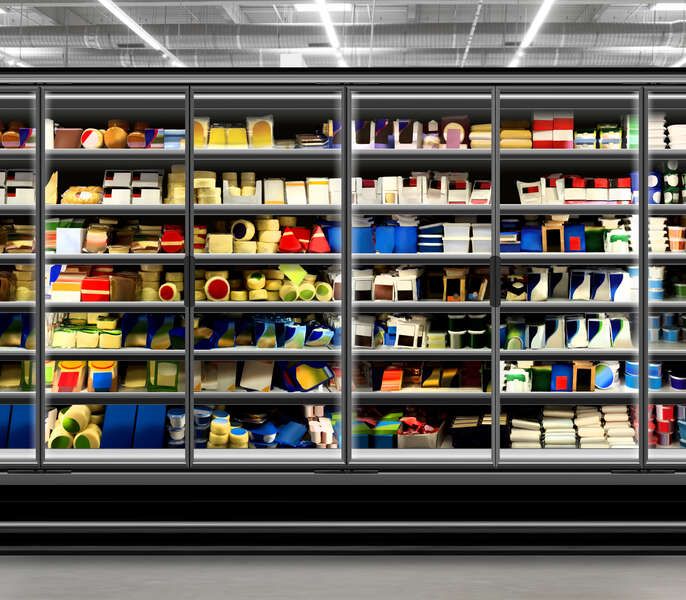

  • Freezer doors
  • Control tower
  • Cold storage
  • Wine storage
  • Lowest haze: Condensation is controlled by a safe electrically conducted heating process of the glass which causes temperature to rise on the glass surface at a safe degree.
  • Excellent clarity: No haze mars your view even if the temperature inside is below zero. This allows viewing of merchandise and display inside the freezer with excellent clarity.
  • Excellent thermal insulation: Excellent thermal insulation also saves you the unwanted energy wasted.
  • High visibility: Viewing merchandise will never be as hazy as it was with ordinary glass



Production Specification
ITEM SIZE THICKNESS
Minimum (mm) Maximum (mm) Minimum (mm) Maximum (mm)
HEATED GLASS® 300 x 300 1500 x 2500  22 -



Capabitity

Performance
Product Name Color Glass Thickness (mm) Optical performance Thermal performance SC SHGC STC
Visible Light (%) Solar Energy (%) UV (%)
T		 Ke=LT/SC RHG U-value
T R T R out A W/m.2 Btu/h-ft2 W/m.2-k Btu/h-ft2-f
Out In
HEATED-0616 Clear 16.38 72 17 18 54 16 30 <1 104.3 457.55 145.07 2.56 0.45 0.69 0.60 N/A
HEATED-0818 Clear 18.38 72 17 18 54 16 30 <1 104.3 453.46 143.77 2.28 0.40 0.69 0.60 32
HEATED-1020 Clear 20.38 72 17 18 54 16 30 <1 104.3 450.55 142.85 2.07 0.36 0.69 0.60 N/A
HEATED-1222 Clear 22.38 72 17 18 54 19 30 <1 104.3 448.39 142.17 1.92 0.34 0.69 0.60 37
HEATED-2030 Clear 30.38 72 17 18 54 16 30 <1 105.9 443.99 140.77 1.57 0.28 0.68 0.59 N/A
HEATED-1022 Clear 22.38 70 16 18 49 14 37 <1 109.4 421.65 133.69 2.07 0.36 0.64 0.56 N/A
HEATED-1224 Clear 24.38 70 16 18 49 14 34 <1 109.4 418.98 132.84 1.91 0.34 0.64 0.56 N/A
