SPACE-LITE®

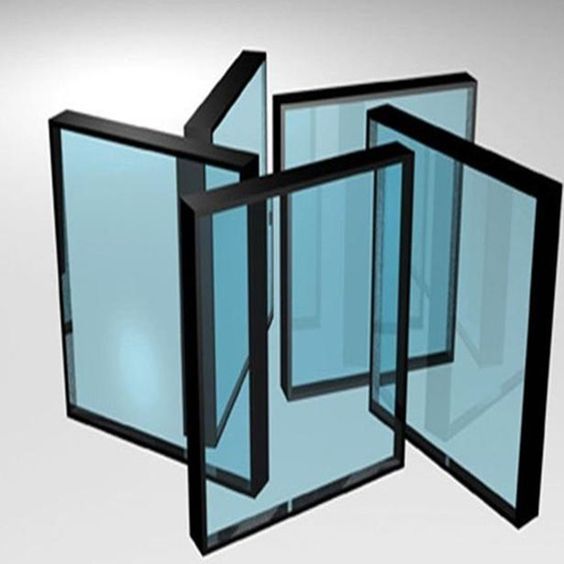

“SPACE-LITE®” Insulated glass is hermetically sealed combinations of two or more lites of glass separated by a dry airspace. The spacer is filled with desiccant to absorb moisture inside the unit. By combining Low-E coatings, standard and high performance tinted glasses, reflective coatings, silk-screened patterns, laminated glass products as well as filling the air space insulating properties. with heavy gas can substantially improve the A wide variety of insulating glass configurations is available to satisfy a wide range of performance and aesthetic requirements.





Application Feature

"SPACE-LITE®" can be used in either interior or exterior application such as

  • Commercial and residential windows
  • Storefronts and Curtain Walls
  • Storefronts and Curtain Walls
  • Non-vision (Spandrel) Locations
  • Light and solar control
  • Sound control and Designed for Ultraviolet screening (to reduce fading), hurricane, earthquake and blast resistance,  security, bullet resistance, and decorative applications.
  • Energy cost saving - Combination with reflective coated glass and/or heavy gas can reduce heat transfer therefore significantly reducing heating and air conditioning costs
  • Sound insulation – Adding sound control film can dampen noise
  • Safety and security – One or both space-lite can be laminated to reduce risk of injury and when broken, stay integral in the frame


Production Specification





SPACE-LITE®
  • Minimum glass size: 200 mm. x 350 mm. (no gas)
  • Minimum glass size: 450 mm. x 450 mm. (with gas)
  • Maximum glass size: 2700 mm. x 3500 mm.
  • Minimum thickness construction: 10 mm.
  • Maximum thickness construction: 65 mm.  (Max weight 400 kgs)
  • Air gap : 4, 6, 8, 10, 12, 14, 16 or 25 mm.



Capability

ITEM Optical performance Thermal Performance
Visible Rays Solar Energy U-Value SC
Ref. In Ref.Out Trans Ref. Out Trans
3mm Clear 8 8 90 8 84 5.8 1.00
FL5/10AAP/FL5 14 14 80 12 63 3.1 0.83
33TEC.2/12AAP/FL6 17 16

73

 12 50 1.9 0.68
5SE/12AAP/FL5 17 11 55 10 39 1.9 0.55



Download
SPACE-LITE Brochure
