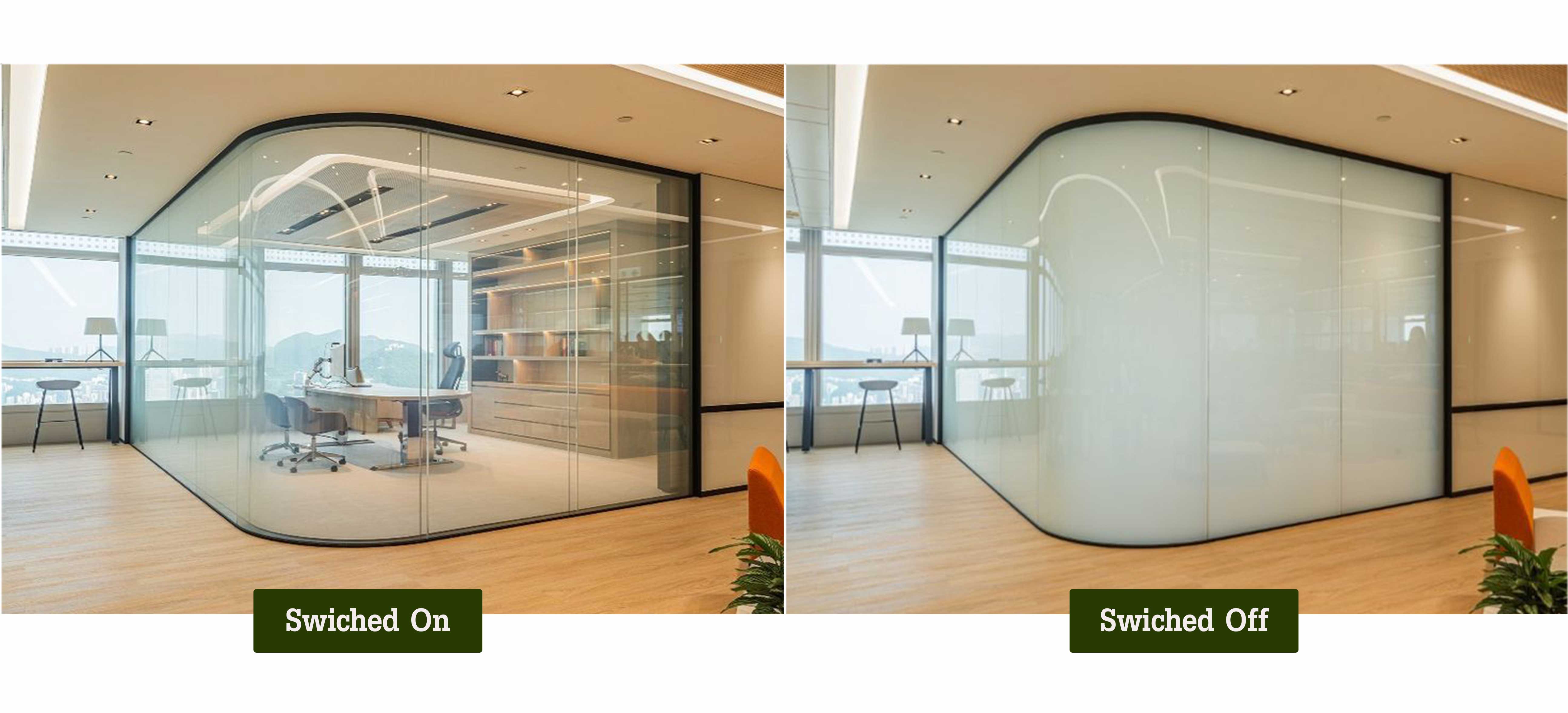

iZZi GLASS® is a magic glass switch-operated from frosted state to clear appearance with 110V voltage applied. This special laminated glass incorporates a state-of-the-art liquid crystal polymer in between two plies of glass. A simple ON-OFF mode transforms a glass from opaque to clear less than a second. The visual appearance control glass is ideal for both indoor and outdoor applications. When the glass is in frosted state, images can be rear projected onto the glass to create LCD display screen. iZZi GLASS® is recommended to be framed on all four edges. The multiple panels of glass can be placed side by side with transparent silicone butt joint to create a large glazed area. Electrical Consumption Operating Voltage : 110V Power consumption: 5W/m2 at 110V, 50Hz at room temperature
| Application | Feature |
|
Ideal for privacy and visual display applications
|
| Glass thickness (mm) | Overall thickness (mm) |
| 4 + 4 | 10.68 |
| 5 + 5 | 12.68 |
| 6 + 6 | 14.68 |
| Product Name | Glass Thickness (mm) | Measure ment | Performance | |||||||||
| Light Transmission | Light Reflection | Haze | SHGC | U-Value | Response Time | Viewing Time | Driving Voltage | Electrical Input | Power consumption | |||
| iZZi FF 2LID-08 iZZi FF 2LID-10 iZZi FF 2LID-12 |
10.05 12.05 14.05 |
On | 75% | 7% | 4% | 0.76 | 4.8-4.9 | <50(ms) |
>130° |
36±4V (AC, 50-60 Hz) |
0-240 VAC. | 5W/m2/h |
| 5W/m2/h | ||||||||||||
|
Oof |
59% | 6% | 88% | 0.08 | 5W/m2/h | |||||||
